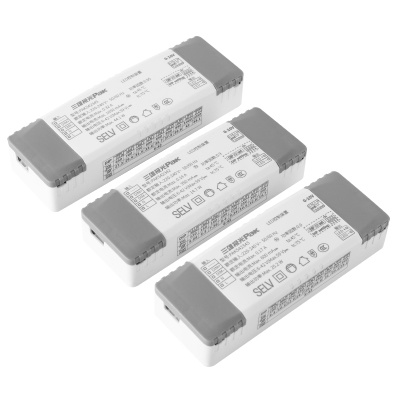

LZ SeriesConstant Current LED Driver 0-10V dial dimming

Dimensions 5-15W 125 x 45 x 26 (mm), 8-25W 125 x 45 x 26 (mm), 27-44W 138 x 45 x 28 (mm) Power 5-15W, 8-25W, 27-44W Input voltage 220-240VAC 50/60Hz Output voltage DC6-42V (Max. 59V) Power efficiency 5-15W ≥ 80%, 8-25W ≥ 84%, 27-44W ≥ 85% Power factor ≥ 0.9 Output mode constant current mode IP level IP20 Material PC Dimming mode 0-10V

Category :

Product Center

Category :

E-MAIL :

Sharing:

产品描述
parameter

Product Introduction:

Single-channel constant current output, multi-stage current optional
· Support 3-in-1 dimming (0-10V, RX adjustable resistor, PWM signal)
· Smooth dimming curve, no flicker
· Overload protection, short circuit protection, over-temperature protection
, suitable for LED indoor lamps, such as downlights, spotlights, panel lights, etc.,
with slow start fade function, making people's eyes more comfortable.
Wide voltage, SELV safety ultra-low voltage, isolated high P constant current.
The shell is made of flame-retardant grade raw materials.
The current can be easily set by DIP DIP switch, and smooth dimming can be achieved by external 0-10V, RX (adjustable resistance), PWM signal.

Applications: offices, museums, convention and exhibition centers, home spaces, hotels, schools, hospitals, shopping malls, parking lots

Specifications:

Product name	Product code	Product model	power	Output voltage	Output current	Factor	Product Dimensions (L×W×H)	Installation:
Lingzhi series 0-10V dial-up dimming constant current power supply	723000237	PAK542342	5-15W	DC6-42V	120-350mA	≥0.9	125×45×26mm	Terminal
	723000238	PAK542343	8-25W	DC6-42V	200-600mA	≥0.9	125×45×26mm	Terminal
	723000240	PAK542345	27-44W	DC6-42V	650-1050mA	≥0.9	138×45×28mm	Terminal
