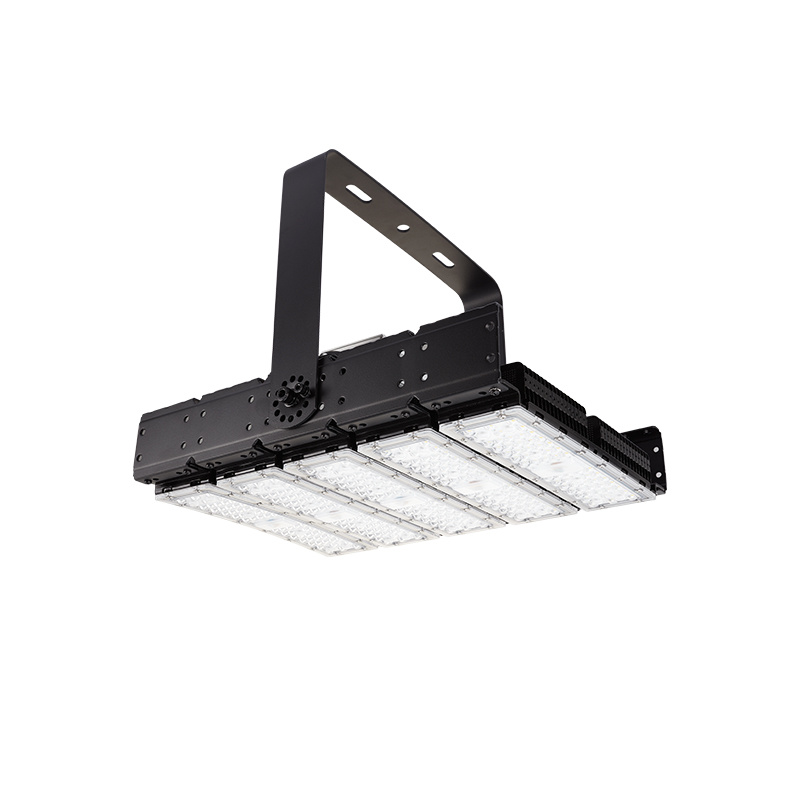

TS Series LED Tunnel Light
Power 30W/60W/100W/120W/150W/180W/200W/240W
Input voltage AC220V 50Hz
Security Level I
IP level IP66
IK level IK09
Color temperature 3000K/4000K/5000K
Light efficiency 135 lm/W
Color rendering index 70
Luminescence angle 100 × 140 ° (other angles can be customized)
Lamp body material aluminum+Q235+PC
Dimming mode 0-10V
Working temperature -40 ℃~50 ℃
Design lifespan 30000H
Light fixture weight 3.1kg/3.6kg/4.5kg/6kg/7.1kg
E-MAIL :
Sharing:
- 产品描述
-
Product Introduction:
Imported high-end light source, light efficiency ≥ 135lm/W, high efficiency and energy saving.
4-6KV anti-surge protection.
IP66
Application places: highway tunnels, railway tunnels, maintenance channels, civil air defense channelsSpecifications:
Model Code power CCT color Dimmable PAK511022 729000020 30W 3000K Sand black not PAK511022 729000021 30W 4000K Sand black not PAK511022 729000013 30W 5000K Sand black not PAK511028 729000051 60W 3000K Sand black not PAK511028 729000060 60W 4000K Sand black not PAK511028 729000053 60W 5000K Sand black not PAK511036 729000025 100W 3000K Sand black not PAK511036 729000057 100W 4000K Sand black not PAK511036 729000055 100W 5000K Sand black not PAK511038 729000029 120W 3000K Sand black not PAK511038 729000030 120W 4000K Sand black not PAK511038 729000031 120W 5000K Sand black not PAK511041 729000035 150W 3000K Sand black not PAK511041 729000014 150W 4000K Sand black not PAK511041 729000050 150W 5000K Sand black not PAK511044 729000039 180W 3000K Sand black not PAK511044 729000040 180W 4000K Sand black not PAK511044 729000041 180W 5000K Sand black not PAK511046 729000045 200W 3000K Sand black not PAK511046 729000015 200W 4000K Sand black not PAK511046 729000056 200W 5000K Sand black not PAK511050 729000016 240W 3000K Sand black not PAK511050 729000019 240W 4000K Sand black not PAK511050 729000052 240W 5000K Sand black not PAK511051 729000022 30W 3000K Sand black 0-10V dimming PAK511051 729000023 30W 4000K Sand black 0-10V dimming PAK511051 729000017 30W 5000K Sand black 0-10V dimming PAK511057 729000058 60W 3000K Sand black 0-10V dimming PAK511057 729000049 60W 4000K Sand black 0-10V dimming PAK511057 729000024 60W 5000K Sand black 0-10V dimming PAK511065 729000026 100W 3000K Sand black 0-10V dimming PAK511065 729000027 100W 4000K Sand black 0-10V dimming PAK511065 729000028 100W 5000K Sand black 0-10V dimming PAK511067 729000032 120W 3000K Sand black 0-10V dimming PAK511067 729000033 120W 4000K Sand black 0-10V dimming PAK511067 729000034 120W 5000K Sand black 0-10V dimming PAK511070 729000036 150W 3000K Sand black 0-10V dimming PAK511070 729000037 150W 4000K Sand black 0-10V dimming PAK511070 729000038 150W 5000K Sand black 0-10V dimming PAK511073 729000042 180W 3000K Sand black 0-10V dimming PAK511073 729000043 180W 4000K Sand black 0-10V dimming PAK511073 729000044 180W 5000K Sand black 0-10V dimming PAK511075 729000046 200W 3000K Sand black 0-10V dimming PAK511075 729000047 200W 4000K Sand black 0-10V dimming PAK511075 729000048 200W 5000K Sand black 0-10V dimming PAK511079 729000059 240W 3000K Sand black 0-10V dimming PAK511079 729000018 240W 4000K Sand black 0-10V dimming PAK511079 729000054 240W 5000K Sand black 0-10V dimming
