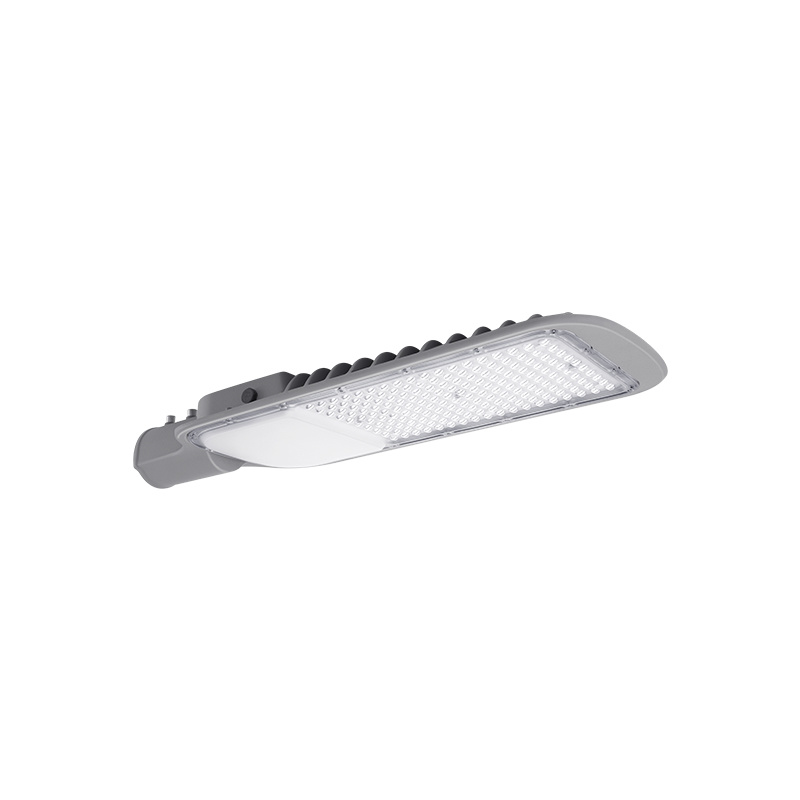

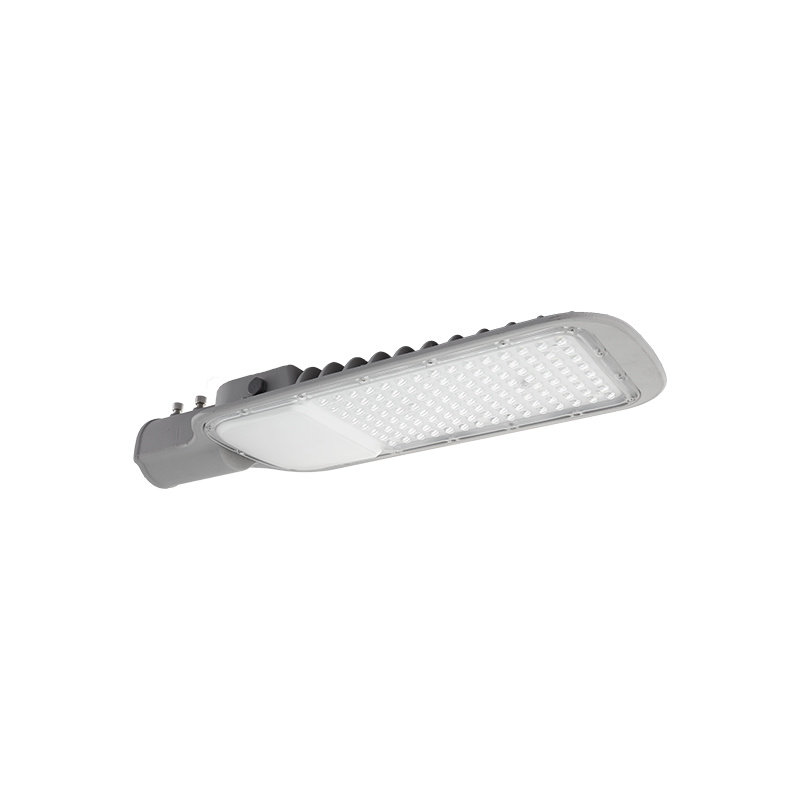

TY Series LED Road Light
Power 30W/50W/80W/100W/120W
Input voltage AC220V 50Hz
Security Level I
IP rating IP65
Color temperature 3000/4000//5000K
Light efficiency 120 lm/W
Color rendering index 80
Luminescent angle 70x145 °
Lamp body material aluminum alloy+PC
E-MAIL :
Sharing:
- 产品描述
-
Product Introduction:
Light efficiency ≥ 120lm/W, more economical and energy-saving.
Waterproof/dustproof IP65.
Independent power supply, no flicker, surge protection up to 4KV.
Optional light sensor configuration, on/off the lights by automatic control with ambient brightness, intelligent and environmentally friendly.
Application places: urban municipal roads, national and provincial roads, rural roads, park roadsSpecifications:
Model Code power CCT Beam angle Sleeve size Light sensibility color PAK481179 727000714 30W 3000K 70x145 degrees 40 not Silver gray PAK481179 727000728 30W 4000K 70x145 degrees 40 not Silver gray PAK481179 727000724 30W 5000K 70x145 degrees 40 not Silver gray PAK481180 727000712 50W 3000K 70x145 degrees 50 not Silver gray PAK481180 727000710 50W 4000K 70x145 degrees 50 not Silver gray PAK481180 727000727 50W 5000K 70x145 degrees 50 not Silver gray PAK481181 727000729 80W 3000K 70x145 degrees 60 not Silver gray PAK481181 727000713 80W 4000K 70x145 degrees 60 not Silver gray PAK481181 727000721 80W 5000K 70x145 degrees 60 not Silver gray PAK481182 727000630 100W 3000K 70x145 degrees 60 not Silver gray PAK481182 727000715 100W 4000K 70x145 degrees 60 not Silver gray PAK481182 727000726 100W 5000K 70x145 degrees 60 not Silver gray PAK481183 727000631 120W 3000K 70x145 degrees 60 not Silver gray PAK481183 727000725 120W 4000K 70x145 degrees 60 not Silver gray PAK481183 727000722 120W 5000K 70x145 degrees 60 not Silver gray PAK481184 727000664 30W 3000K 70x145 degrees 40 Yes Silver gray PAK481184 727000665 30W 4000K 70x145 degrees 40 Yes Silver gray PAK481184 727000666 30W 5000K 70x145 degrees 40 Yes Silver gray PAK481185 727000667 50W 3000K 70x145 degrees 50 Yes Silver gray PAK481185 727000668 50W 4000K 70x145 degrees 50 Yes Silver gray PAK481185 727000708 50W 5000K 70x145 degrees 50 Yes Silver gray PAK481186 727000669 80W 3000K 70x145 degrees 60 Yes Silver gray PAK481186 727000670 80W 4000K 70x145 degrees 60 Yes Silver gray PAK481186 727000671 80W 5000K 70x145 degrees 60 Yes Silver gray PAK481187 727000672 100W 3000K 70x145 degrees 60 Yes Silver gray PAK481187 727000673 100W 4000K 70x145 degrees 60 Yes Silver gray PAK481187 727000711 100W 5000K 70x145 degrees 60 Yes Silver gray PAK481188 727000674 120W 3000K 70x145 degrees 60 Yes Silver gray PAK481188 727000675 120W 4000K 70x145 degrees 60 Yes Silver gray PAK481188 727000676 120W 5000K 70x145 degrees 60 Yes Silver gray Part number fittings Pole diameter/conversion size color / 740000011 Wall-mounted arm 40 white / 740000012 Wall-mounted arm 50 white / 740000017 Wall-mounted arm 60 white / 740000013 Sleeve converter 40 to 60 white / 740000019 Sleeve converter 50 to 60 white
