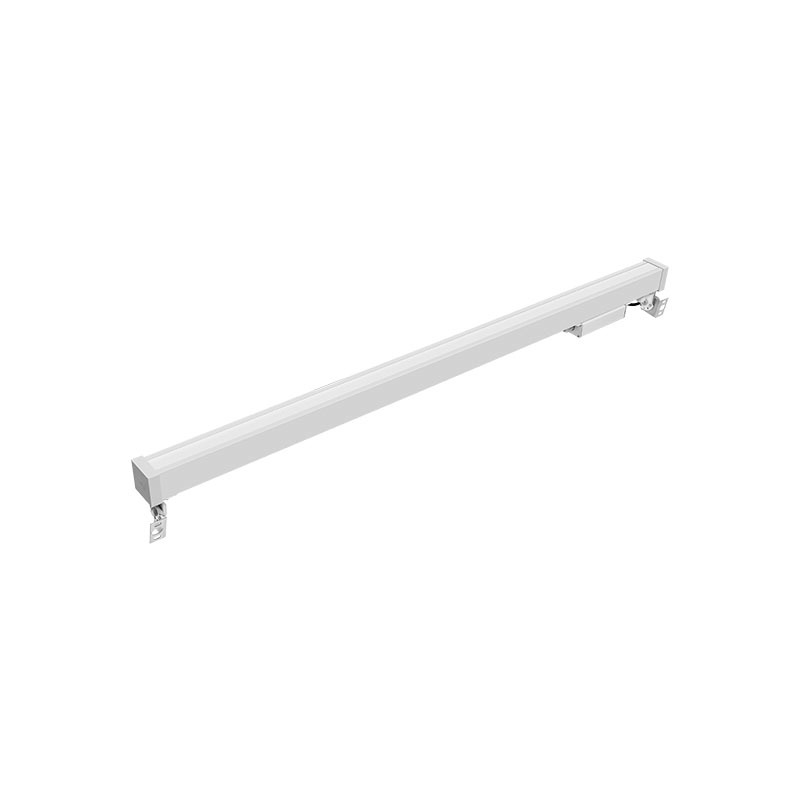

TY Series LED Surface Batten

Light efficiency 90lm/W IP rating IP65 Power 8/12/16/18/24W Color temperature 5000K Color rendering index 80 Beam angle 120 ° Safety level I Working temperature -20~45 ℃ Service life 30000 hours Input voltage AC220V \ AC/DC36V Power factor 0.95 (regular model) Surge protection 2KV/2KV Installation method wall mounted Shell material aluminum alloy

Category :

Product Center

Category :

E-MAIL :

Sharing:

产品描述

Application place: subway, tunnel, underground pipe gallery and other

product parameters:

Model	Code	description	Light effect	IP rating	power	CCT	CRI	Beam angle
PAK411310	711000705	350x55x123mm	90lm/W	IP65	8W	5000K	80	120°
PAK411311	711000706	350x105x152mm	90lm/W	IP65	8W	5000K	80	120°
PAK41112C	711000707	350x155x177mm	90lm/W	IP65	12W	5000K	80	120°
PAK41107A	711000708	350x105x152mm	90lm/W	IP65	16W	5000K	80	120°
PAK41110B	711000709	350x155x177mm	90lm/W	IP65	18W	5000K	80	120°
PAK41110C	711000710	600x55x123mm	90lm/W	IP65	18W	5000K	80	120°
PAK41110D	711000711	600x105x152mm	90lm/W	IP65	18W	5000K	80	120°
PAK41110E	711000712	600x155x177mm	90lm/W	IP65	18W	5000K	80	120°
PAK41124C	711000715	600x155x177mm	90lm/W	IP65	24W	5000K	80	120°
PAK41110G	711000713	1200x105x152mm	90lm/W	IP65	18W	5000K	80	120°
PAK41110H	711000714	1200x155x177mm	90lm/W	IP65	18W	5000K	80	120°
PAK41107J	711000716	350x105x152mm 36V	90lm/W	IP65	16W	5000K	80	120°
PAK41110K	711000717	350x155x177mm 36V	90lm/W	IP65	18W	5000K	80	120°
PAK41110L	711000718	600x55x123mm 36V	90lm/W	IP65	18W	5000K	80	120°
PAK41110M	711000719	600x105x152mm 36V	90lm/W	IP65	18W	5000K	80	120°
PAK41110N	711000720	600x155x177mm 36V	90lm/W	IP65	18W	5000K	80	120°
